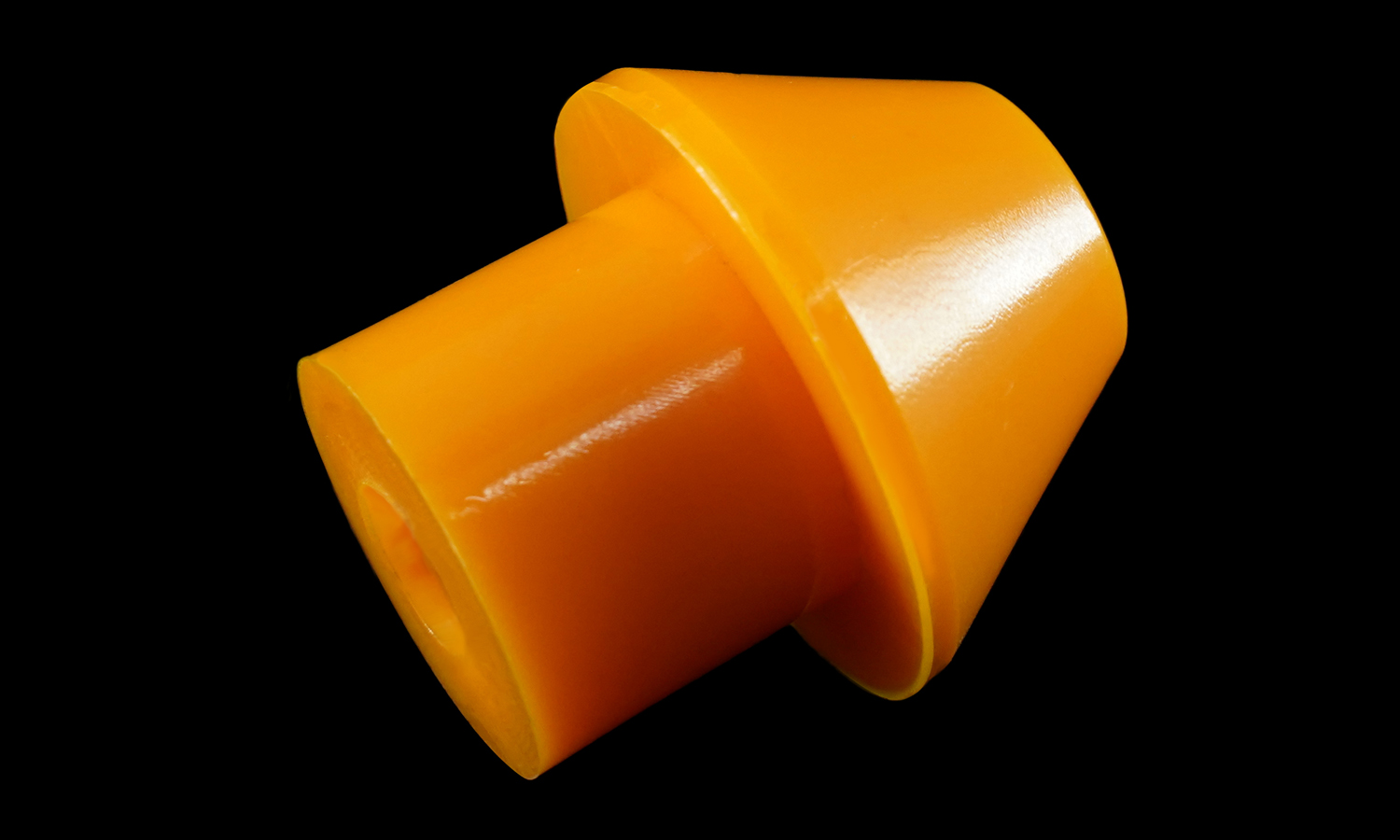

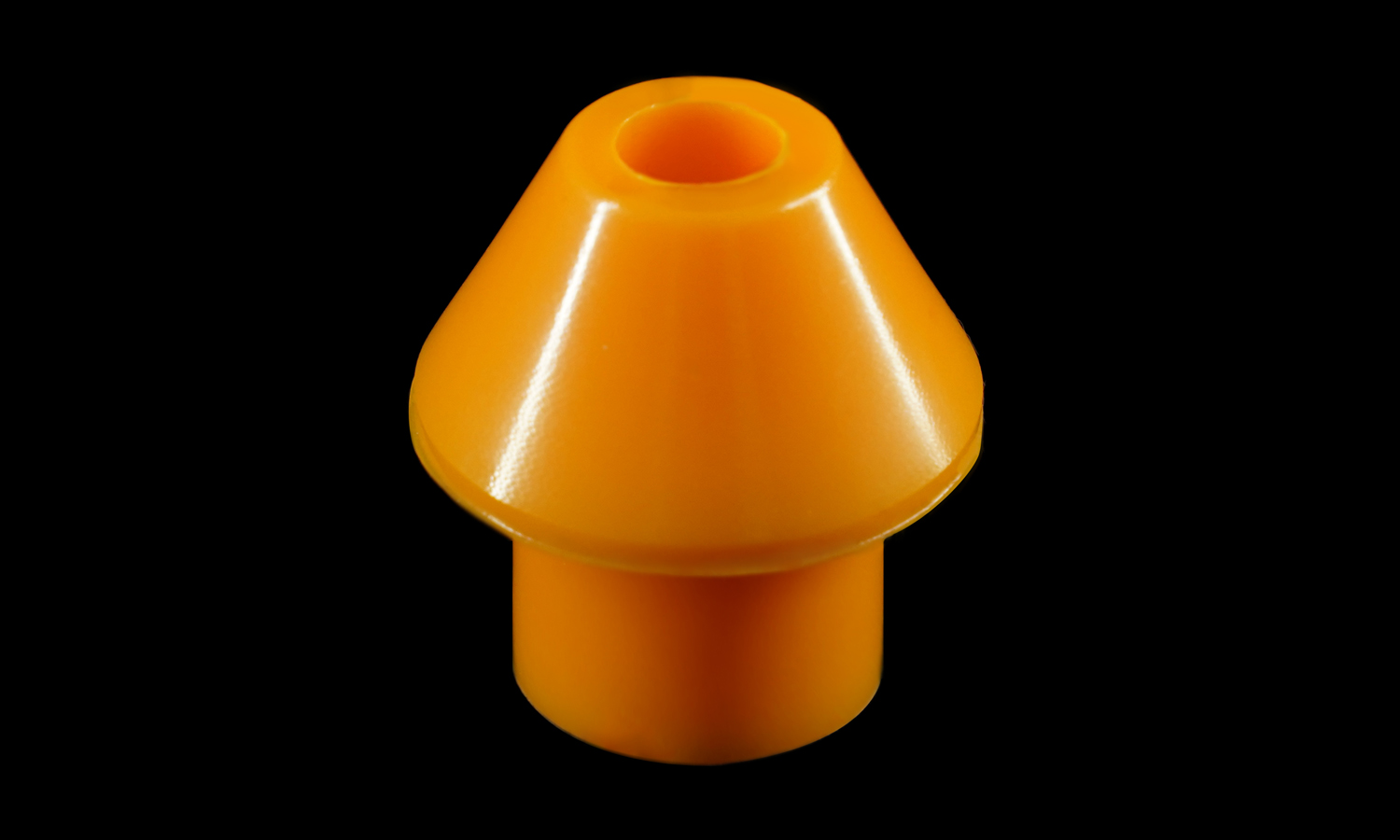

In industrial design, the difference between a “good” part and a “perfect” part is often in the mounting. While many bumpers are simply glued or snapped into place, this Polyurethane (PU) Conical Buffer features a precise through-hole design that changes the game for high-stress applications.

Form Meets Function

The mushroom-shaped profile is world-renowned for progressive damping. By tapering from a narrow tip to a wide base, the buffer provides a soft initial touch that rapidly stiffens as the load increases. But the true secret is the center hole. This allows the buffer to be securely bolted or pinned directly to a machine’s frame, ensuring it stays perfectly aligned even under extreme lateral shear or repetitive high-impact cycles.

Why PU is the Material of Choice

Polyurethane isn’t just “fancy rubber.” It鈥檚 an elastomer engineered for the toughest environments:

• Zero Migration: Unlike rubber, high-quality PU won’t “bleed” oils or leave marks on contact surfaces.
• High Load Capacity: It maintains its shape and damping properties under weights that would permanently flatten other materials.
• Environmental Resilience: Whether it鈥檚 splashed with machine coolant or exposed to grease, this orange PU buffer remains chemically stable and ready to work.

From assembly line hard-stops to heavy-duty vehicle jounce bumpers, the through-hole design ensures that your protection is as permanent as your hardware.

Bring Your Custom PU Designs to Life with FacFox

Are you looking for high-performance, custom-molded PU parts like these? FacFox is your go-to partner for professional PU Casting and Forming services. We specialize in low-to-mid volume production, offering a massive range of Shore hardnesses and custom colors to match your exact specifications. Whether you need complex through-hole geometries, metal inserts, or high-gloss finishes, our expert team utilizes advanced silicone molding and vacuum casting to deliver production-grade parts with incredible speed.

Ready to upgrade your machinery? Contact FacFox today to get a quote and see how our PU forming services can streamline your production!

Solution

• Step 1: The two-part metal mold was precision-machined and pre-heated to a specific temperature to ensure optimal material flow.
• Step 2: A central mandrel was inserted into the mold cavity so that the hollow through-hole could be formed during the casting process.
• Step 3: The liquid polyurethane pre-polymer and curative were measured and mixed with orange pigment until a uniform consistency was achieved.
• Step 4: The degassed liquid mixture was poured into the heated mold, ensuring that all air bubbles were removed to prevent internal structural flaws.
• Step 5: The filled mold was placed in a curing oven where the chemical cross-linking of the polymer was completed under controlled heat.
• Step 6: The solidified part was demolded, the central mandrel was extracted, and any excess flash was trimmed from the parting lines.
