WJP 3D Printed Full-color Henry Fox Resin Miniature

WJP 3D Printed Full-color Henry Fox Resin Miniature

facfox-case-study
Process 3D Print
Material Resin
Quantity 1 pcs
Price Range $1-100
Lead Time 2 workdays

Gallery

About Project

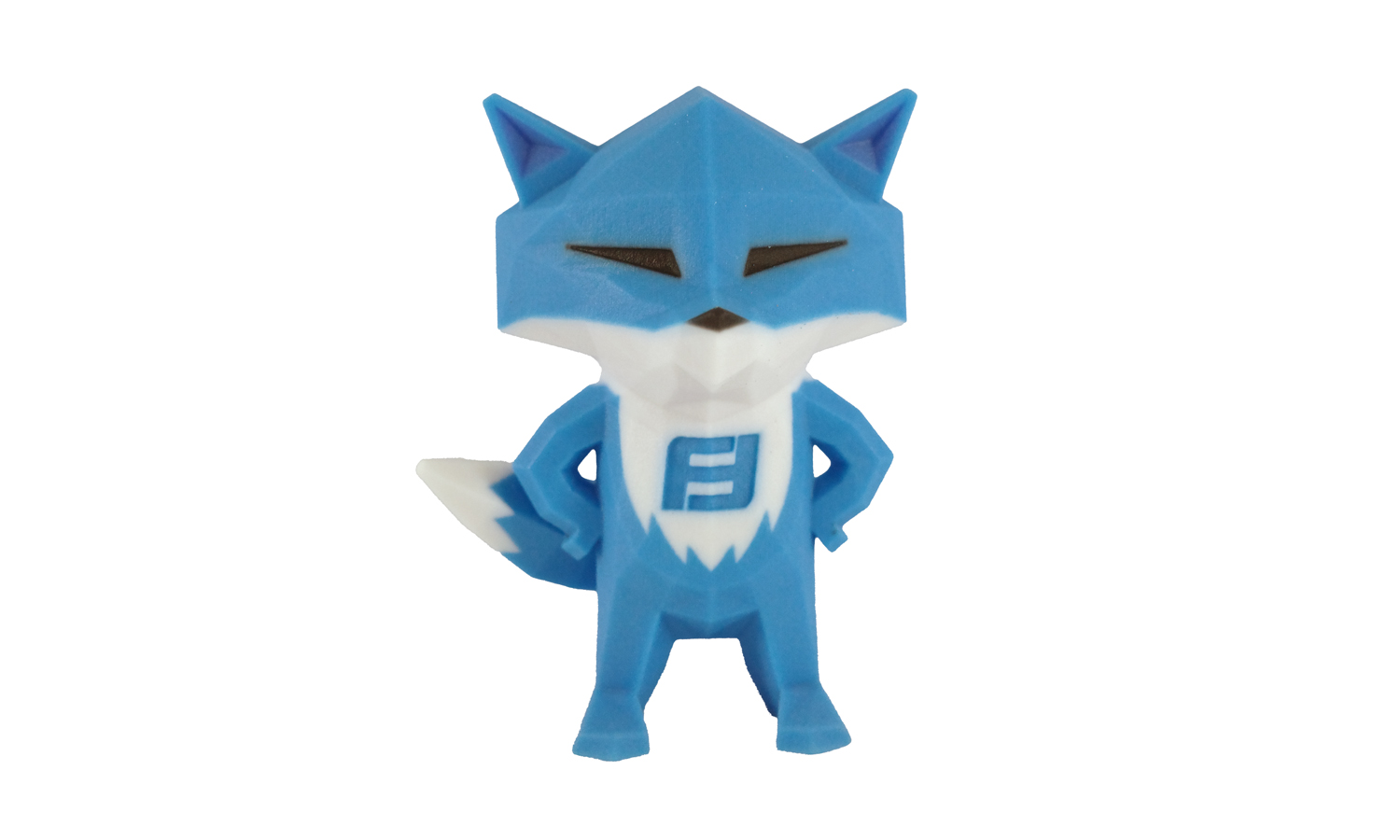

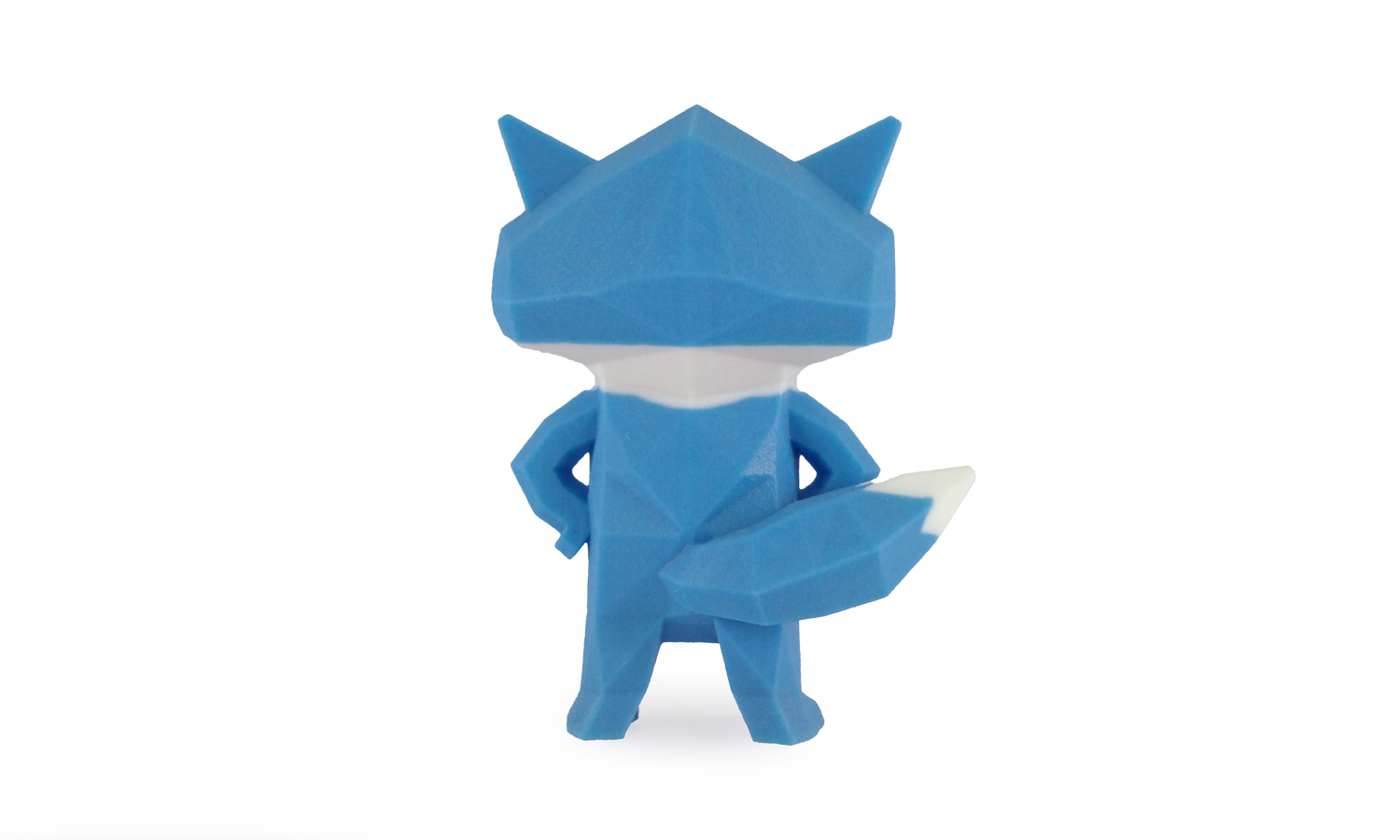

Feast your eyes on this charming Henry Fox miniature, brought to life through the wonders of WJP (Wax Jet Printing) full-color 3D printing technology! This little character showcases the impressive color fidelity and detail achievable with this advanced method.

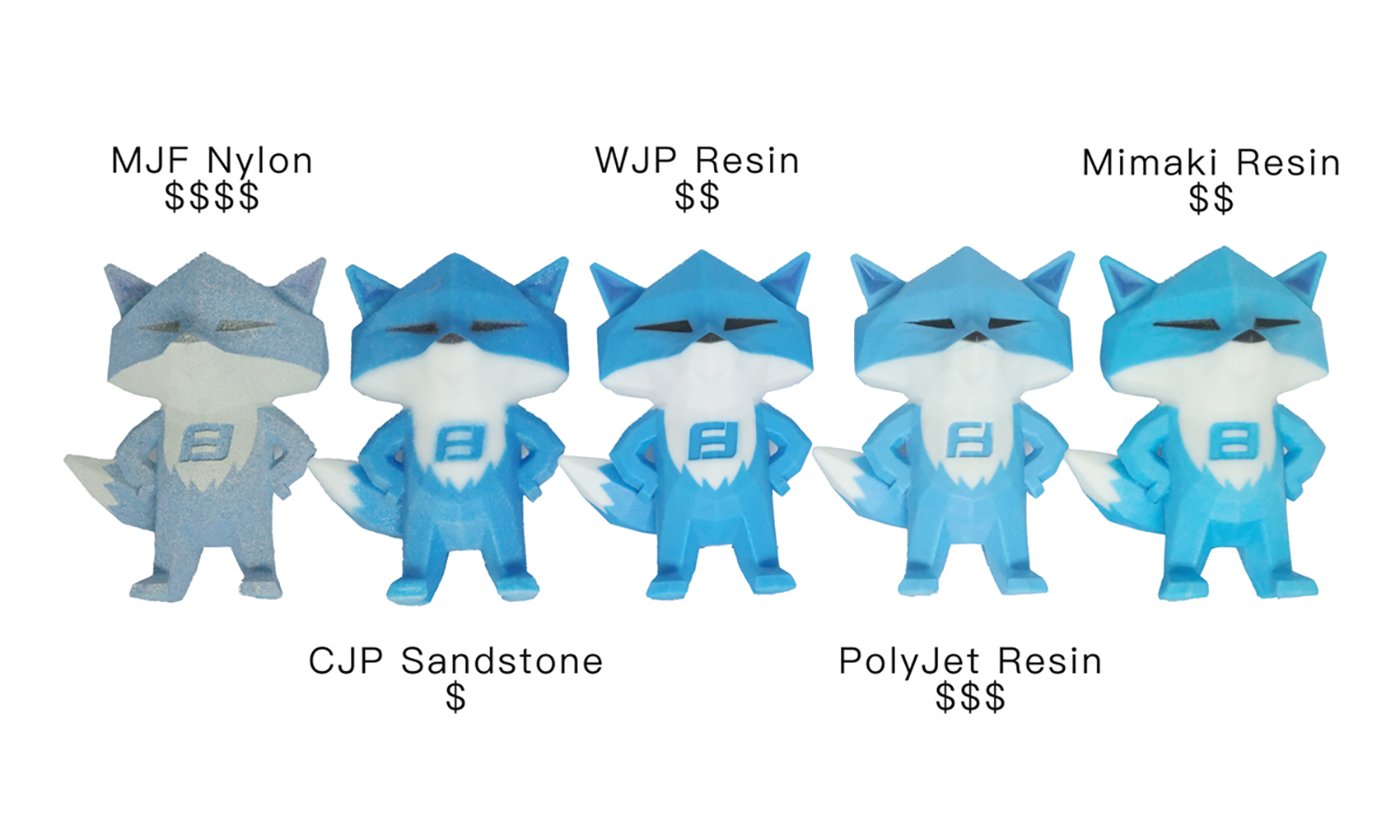

Notice the rich blues and crisp whites, perfectly capturing the essence of the original 3D model. The surface finish is remarkably smooth, a testament to the precision of the WJP process. What truly sets this miniature apart is its exceptional color accuracy. Compared to other full-color 3D printing techniques, the blue areas on Henry are strikingly close to the intended digital design. The boundaries between colors are sharp and clean, with minimal bleeding, resulting in a truly vibrant and professional-looking piece.

This detailed miniature highlights the potential of full-color 3D printing for creating intricate figurines, prototypes with realistic color representation, and even personalized gifts that truly stand out.

WJP 3D Printing Technical Specifications:

Feature Specification
Minimum Build Size 5mm x 5mm x 5mm
Maximum Build Size 390mm x 340mm x 240mm
Minimum Wall Thickness 1mm
Minimum Embossed & Engraved Details (Diameter & Width) 0.8mm D & 0.8mm W
Minimum Clearance (between parts for assembly) 0.2mm
Minimum Clearance (between moving or connecting parts) 1.5mm
Threads Design 1.5mm

Ready to bring your own colorful creations to life? At FacFox, we offer professional 3D printing services, including advanced full-color WJP technology, to deliver high-quality parts with exceptional detail and color accuracy. Whether you need prototypes, end-use parts, or eye-catching miniatures like Henry, our experienced team and state-of-the-art equipment are here to turn your ideas into reality. Visit our website today to explore our capabilities and get a quote for your next 3D printing project!

Solution

  • Step 1: A 3D digital model of the Henry Fox miniature was first created using computer-aided design (CAD) software.
  • Step 2: The digital model was then uploaded to the Wax Jet Printing (WJP) system.
  • Step 3: Layer by layer, a build material, typically a photopolymer resin, was selectively jetted onto the build platform.
  • Step 4: Simultaneously, colored inks were precisely deposited according to the color information in the digital model for each layer.
  • Step 5: After each layer was jetted, it was cured or solidified using a UV light source.
  • Step 6: This process of jetting and curing was repeated until the entire miniature was formed.
  • Step 7: Once the printing process was complete, the build platform was removed from the printer.
  • Step 8: Support structures, which were often generated to support overhangs and intricate details, were carefully removed from the printed miniature.
  • Step 9: A post-processing cleaning step was performed to remove any residual uncured material.
  • Step 10: The finished full-color Henry Fox miniature was then ready for inspection and delivery.
