Introducing our meticulously crafted SLA 3D Printed High-temp Resin-220°C Impeller, designed for superior performance and durability. This cutting-edge 3D printed component showcases the remarkable capabilities of high-temp resin materials, making it an ideal choice for high-demand applications.

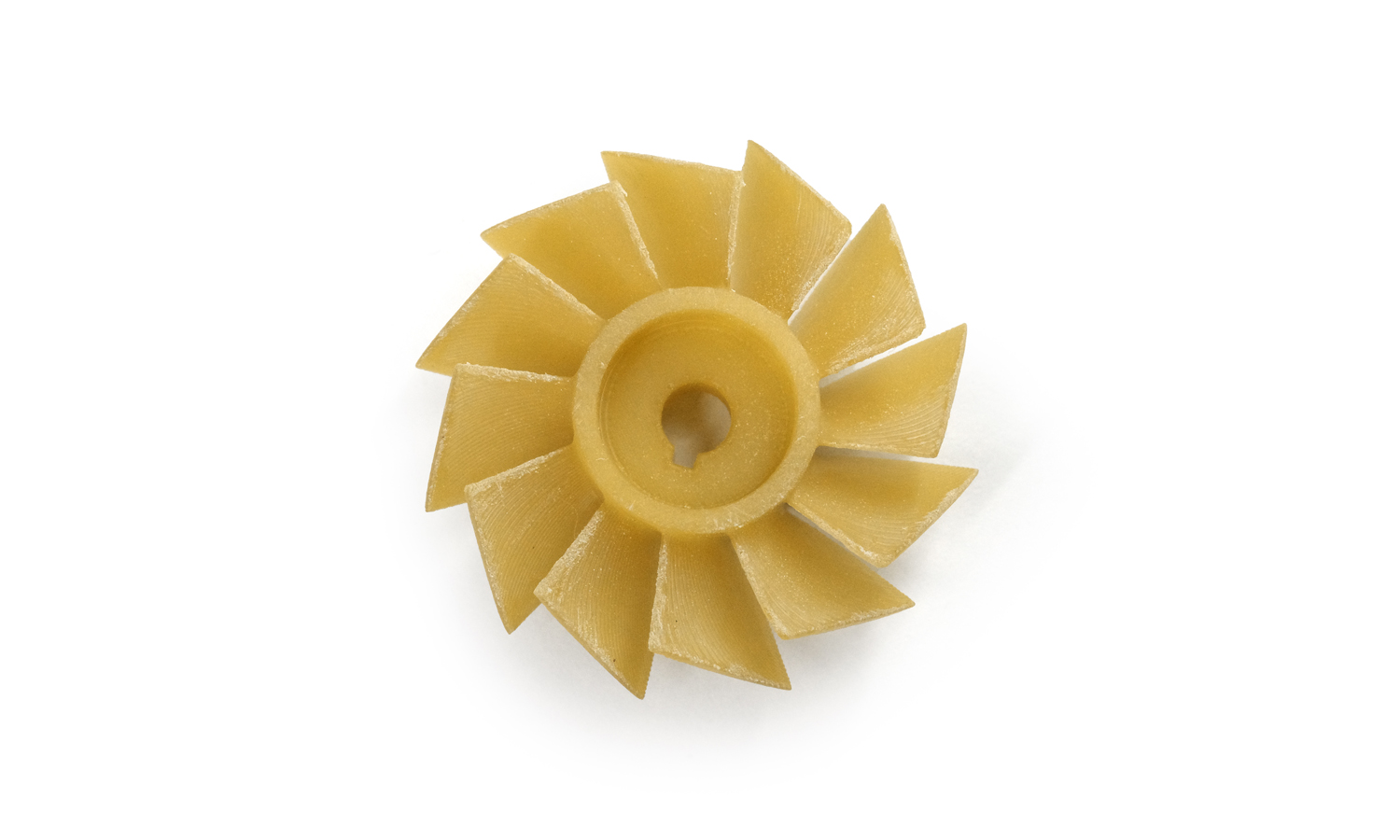

The impeller features multiple blades radiating from a central hub, each blade precisely designed for optimal functionality. The front surface of the blades is exceptionally smooth with minimal visible layer lines, highlighting excellent layer adhesion and precision. This ensures a sleek and aerodynamic surface, essential for efficient operation.

Detailed Evaluation

• Back Surface: The back surface is matte with visible support marks, typical for 3D-printed objects. These can be further refined through post-processing techniques such as sanding and polishing to achieve a more uniform finish.

• Blades: The blades are evenly spaced and symmetrical, indicating precise printing and excellent detail retention. The well-defined edges are crucial for the impeller's performance, ensuring smooth and efficient airflow or fluid movement.

• Central Hub: The central hub features a keyhole-shaped opening, cleanly printed without significant defects. This demonstrates accurate dimensional control, essential for ensuring a proper fit and function in mechanical assemblies.

Key Features and Benefits

• High Precision: The impeller showcases meticulous attention to detail, with smooth surfaces and well-defined features that meet high standards of accuracy.

• Durable Material: Made from high-temp resin, the impeller can withstand temperatures up to 220°C, making it suitable for rigorous environments and applications.

• Versatile Use: Ideal for use in turbines, pumps, and other mechanical systems where efficient fluid or airflow is critical.

Experience the FacFox Advantage

At FacFox, we specialize in providing top-tier 3D printing services using advanced high-temp resin materials. Our state-of-the-art SLA 3D printing technology ensures that every component meets the highest standards of quality and performance. From prototyping to full-scale production, our expert team is dedicated to delivering solutions that exceed your expectations.

Elevate your projects with FacFox's SLA 3D printing services. Contact us today to learn more about our high-temp resin materials and how we can bring your designs to life!

Solution

• Step 1: 3D Model Creation. A digital 3D model of the impeller was designed using specialized software.
• Step 2: Printing Preparation. The 3D model was sliced into layers, and the SLA 3D printer was calibrated for the material.
• Step 3: Resin Dispensing. SLA High-temp Resin-220°C was dispensed layer by layer onto the build platform using a laser.
• Step 4: Layer Curing. A UV laser cured each layer of resin, solidifying it into the desired shape.
• Step 5: Build Platform Lowering. The build platform was lowered to allow for the dispensing of the next layer.
• Step 6: Post-Processing. The printed impeller was removed from the build platform and cleaned to remove any excess resin.
• Step 7: Curing. The impeller was cured under UV light to ensure complete polymerization and optimal material properties.
• Step 8: Finishing. Supports were removed and the back surface of the impeller may have undergone sanding to achieve a more uniform finish.
