High-Performance Engineering with PA12GF 3D Printing
When it comes to functional prototypes and end-use parts, standard plastics often fall short under extreme conditions. Our latest project highlights the versatility of PA12GF (Glass-Filled Nylon)—a composite material designed for environments where durability, heat resistance, and structural integrity are non-negotiable.
Rugged Solutions for Demanding Applications
We recently tackled three distinct engineering challenges using PA12GF to replace traditional manufacturing methods:
- Electric Chainsaw Housing: Tools subjected to high-frequency vibration and heat require exceptional impact strength. PA12GF provided the necessary rigidity to protect internal components while allowing for rapid design iterations that reduced R&D costs and improved mold reliability.

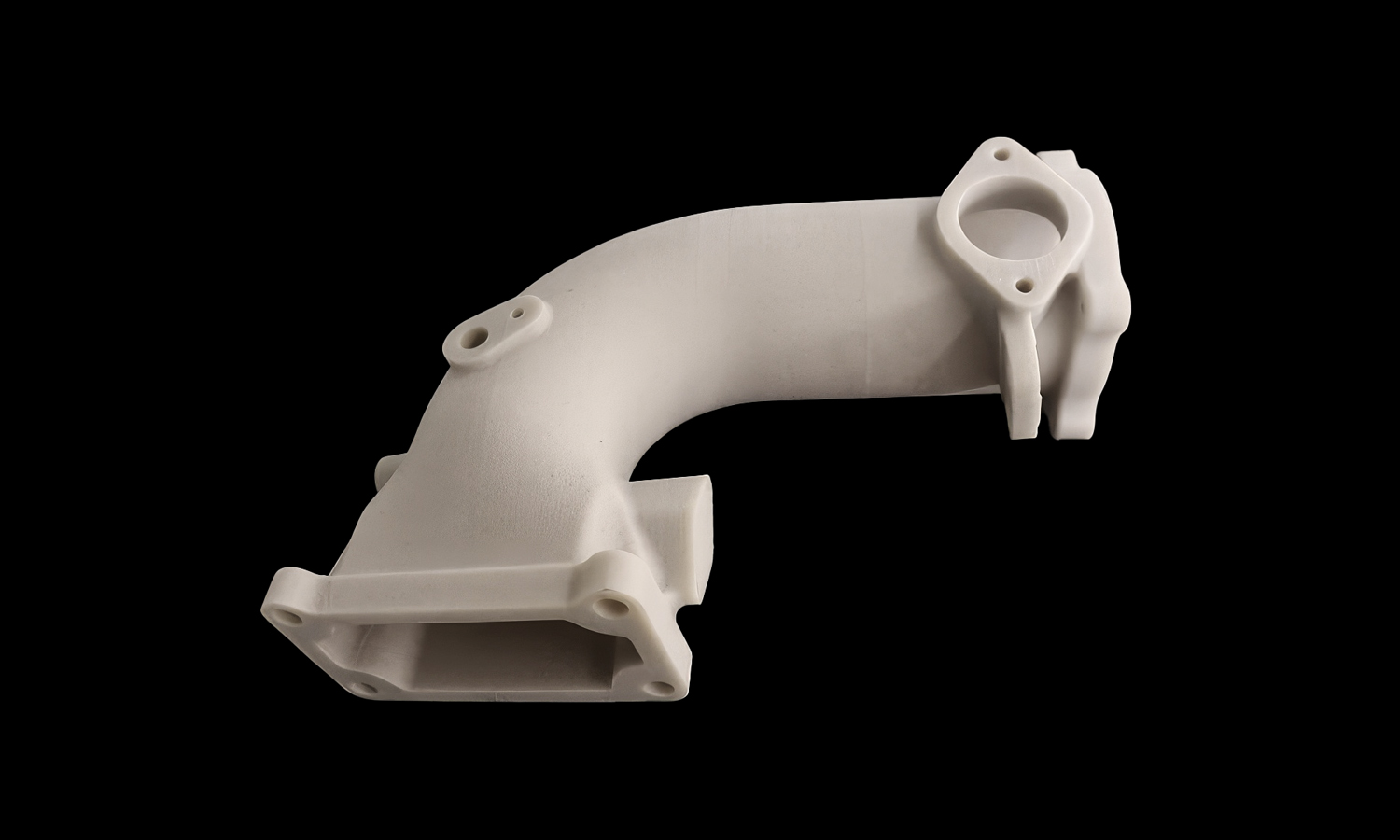

- Automotive Intake Manifold: For automotive testing, internal airflows must be smooth and the part must withstand engine bay temperatures. By using PA12GF and specialized internal polishing post-processing, we delivered airtight, heat-resistant manifolds that accurately reflected final production performance.
- Industrial Cooling Shroud: Traditional CNC machining for complex shrouds is time-consuming and expensive. 3D printing these parts in PA12GF ensured they remained dimensionally stable during long-term fan operation, significantly shortening the production cycle for small-batch runs.
Why PA12GF?
The “GF” stands for glass beads, which are infused into the Nylon 12 matrix. This results in parts with higher tensile strength, superior thermal stability, and excellent surface quality. It is the go-to choice for engineers who need the speed of 3D printing without sacrificing the “industrial-grade” feel.
Accelerate Your Manufacturing with FacFox
At FacFox, we specialize in turning complex engineering challenges into high-quality physical realities. Whether you need the ruggedness of PA12GF, the precision of SLA, or large-scale industrial prints, our professional 3D printing services are designed to scale with your project. From rapid prototyping to small-batch production, FacFox provides the expertise and advanced materials to help you reduce lead times and stay ahead of the competition.
Ready to bring your designs to life? Contact FacFox today for a quote!
Solution
- Step 1: The 3D digital models of the chainsaw housing, intake manifold, and cooling shroud were analyzed and optimized for the Selective Laser Sintering (SLS) process.
- Step 2: A thin layer of PA12 powder, pre-mixed with glass beads, was evenly deposited across the build platform by a coating roller.
- Step 3: A high-powered CO2 laser was directed onto the powder bed, where the specific cross-sections of the parts were traced and the particles were fused together.
- Step 4: The build platform was lowered by one layer thickness, and the powder deposition and laser sintering cycle was repeated until the full height of the components was achieved.
- Step 5: The entire build volume was allowed to cool gradually within the nitrogen-purged chamber to prevent thermal warping and ensure dimensional stability.
- Step 6: The finished parts were extracted from the “cake” of unsintered powder and the excess material was removed using compressed air and bead blasting.
- Step 7: For the automotive intake manifold, a specialized manual polishing process was applied to the internal channels to achieve the required smoothness for airflow testing.
- Step 8: A final quality inspection was performed to verify that all design parameters and heat-resistance requirements were met before the parts were cleared for assembly.
