Discover the excellence of SLA 3D printing with FacFox's advanced services, featuring the SLA High-Temp Resin-220°C Triangular Bracket. This 3D-printed component is designed to meet the most demanding high-temperature applications, showcasing the superior capabilities of our high-temp-resistant materials.

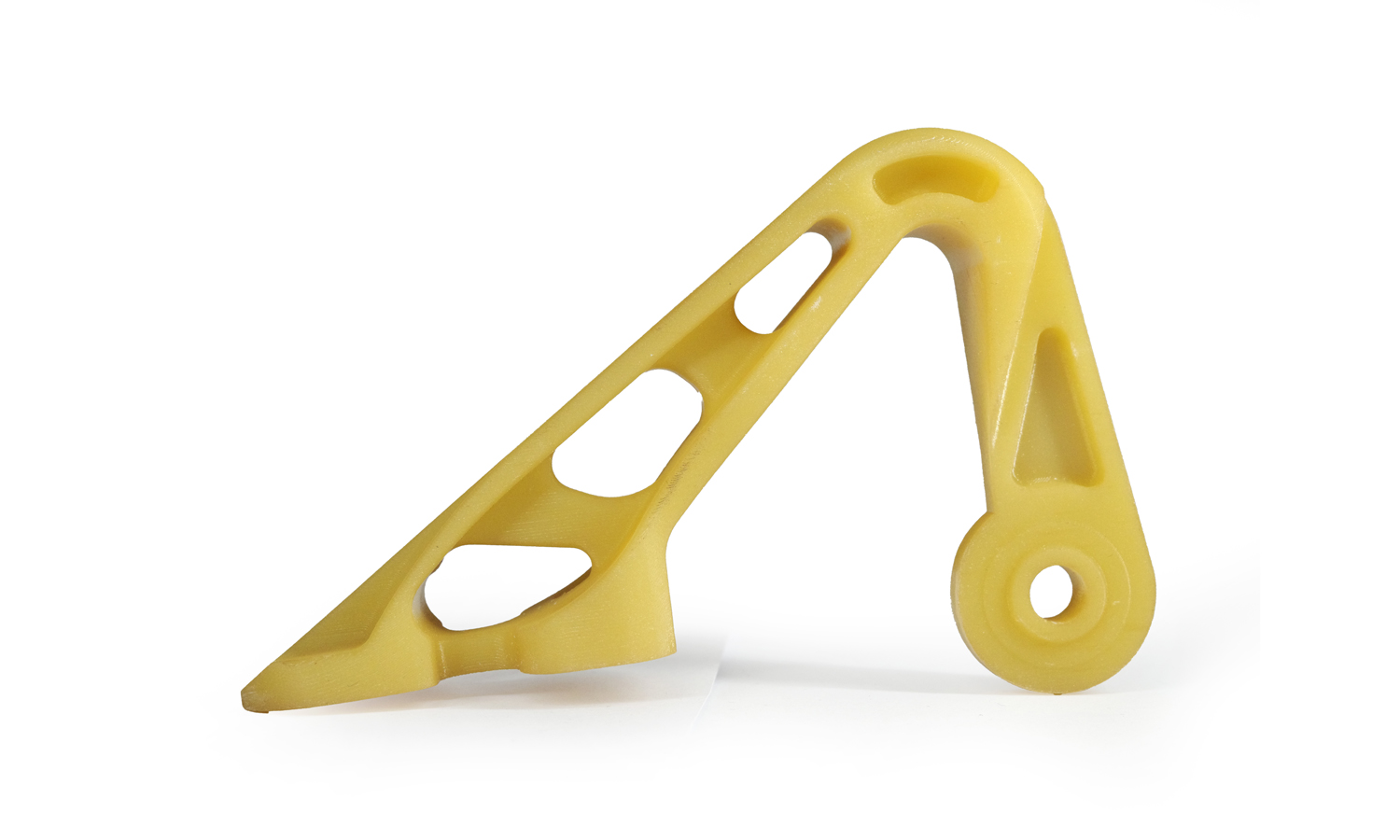

The Triangular Bracket is a meticulously crafted 3D print made from yellow SLA High-temp Resin-220°C. The design features several strategic cut-out sections to minimize material usage and weight while preserving robust structural integrity. At one end, a precisely formed hole allows for easy mounting or attachment, enhancing its functionality.

Printing Quality

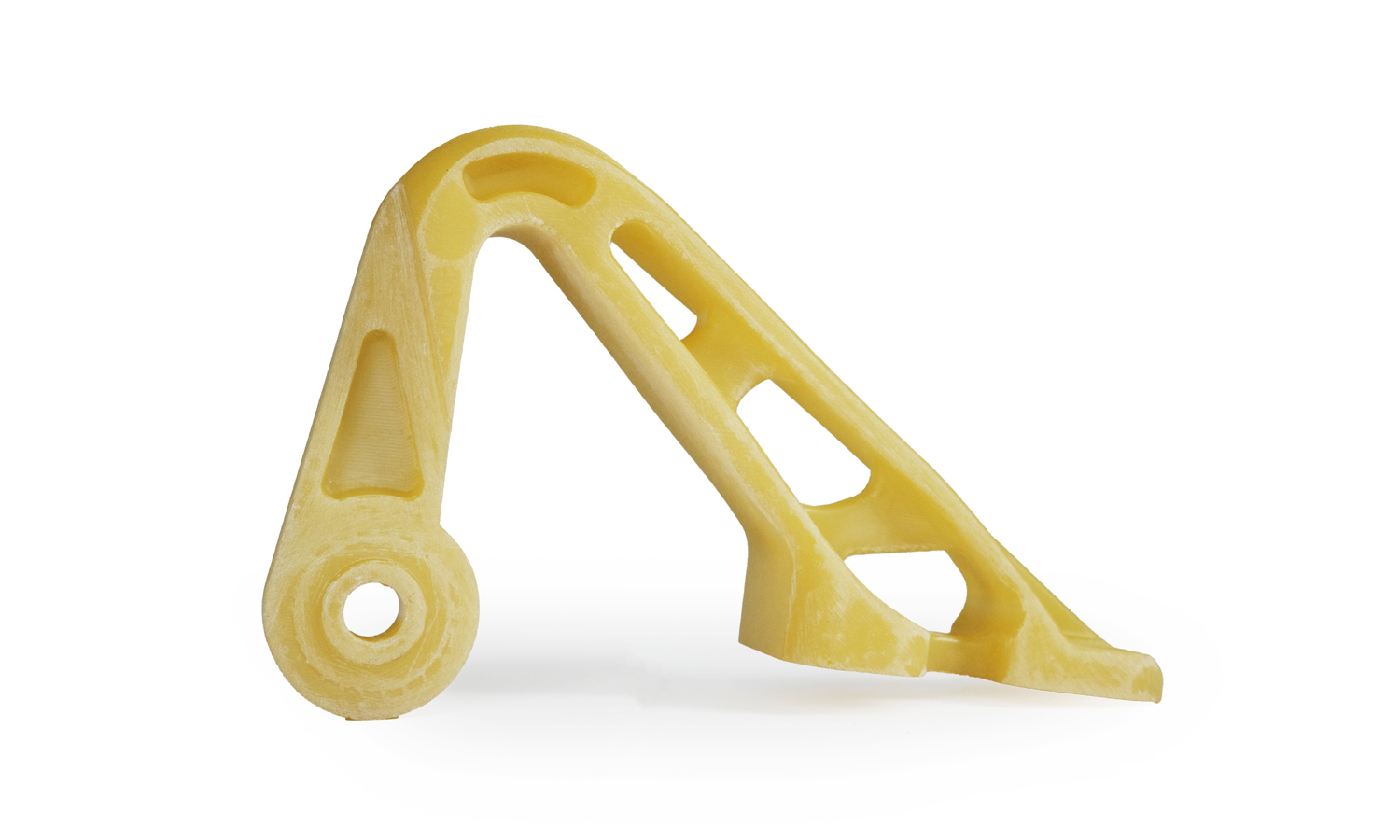

• Exceptional Surface Finish: The front surface exhibits minimal visible 0.1mm layer lines, reflecting excellent layer adhesion and high precision. After basic sanding, the surface shows some white marks, indicating that further fine sanding and polishing could enhance the finish.
• Clean and Sharp Details: The cutouts and central hole are printed with clean, sharp edges, ensuring the component fits perfectly in high-precision applications.
• Structural and Functional Accuracy: The bracket's design ensures it can handle precise fits and alignments, making it ideal for various industrial uses.

Superior Material Properties

SLA High-temp Resin-220°C (Temp R220) stands out for its remarkable temperature resistance. Post-treatment, the resin achieves a heat deflection temperature of up to 227°C, making it suitable for high-stress environments. This material is perfect for applications such as:

• Wind Tunnels
• Impellers
• Motors
• Rapid Molds

Why Choose FacFox?

• Advanced Technology: Leveraging the latest SLA 3D printing technology, FacFox ensures top-notch precision and detail in every print.
• Expertise in High-Temp Materials: Our in-depth knowledge of high-temperature resins guarantees that your components will perform exceptionally under rigorous conditions.
• Customized Solutions: We provide tailored 3D printing services to meet your specific needs, whether for prototyping or full-scale production.

Experience the FacFox Advantage

Transform your projects with FacFox's SLA 3D printing services using High-temp Resin-220°C. Trust us to deliver high-quality, temperature-resistant components that meet your exact specifications and withstand the toughest environments.

Take your designs to the next level with FacFox. Contact us today to start your journey!

Solution

• Step 1: 3D Model Creation. A digital 3D model of the Triangular Bracket was designed using specialized software.
• Step 2: SLA Printing Preparation. The 3D model was sliced into layers, and the SLA 3D printer was calibrated for the material.
• Step 3: Resin Dispensing. SLA High-temp Resin-220°C was dispensed layer by layer onto the build platform using a laser.
• Step 4: Layer Curing. A UV laser cured each layer of resin, solidifying it into the desired shape.
• Step 5: Build Platform Lowering. The build platform was lowered to allow for the dispensing of the next layer.
• Step 6: Post-Processing. The printed bracket was removed from the build platform and cleaned to remove any excess resin.
• Step 7: Curing. The bracket was cured under UV light to ensure complete polymerization and optimal material properties.
• Step 8: Finishing. The surface of the bracket was lightly sanded to remove any minor imperfections and improve the overall finish.
