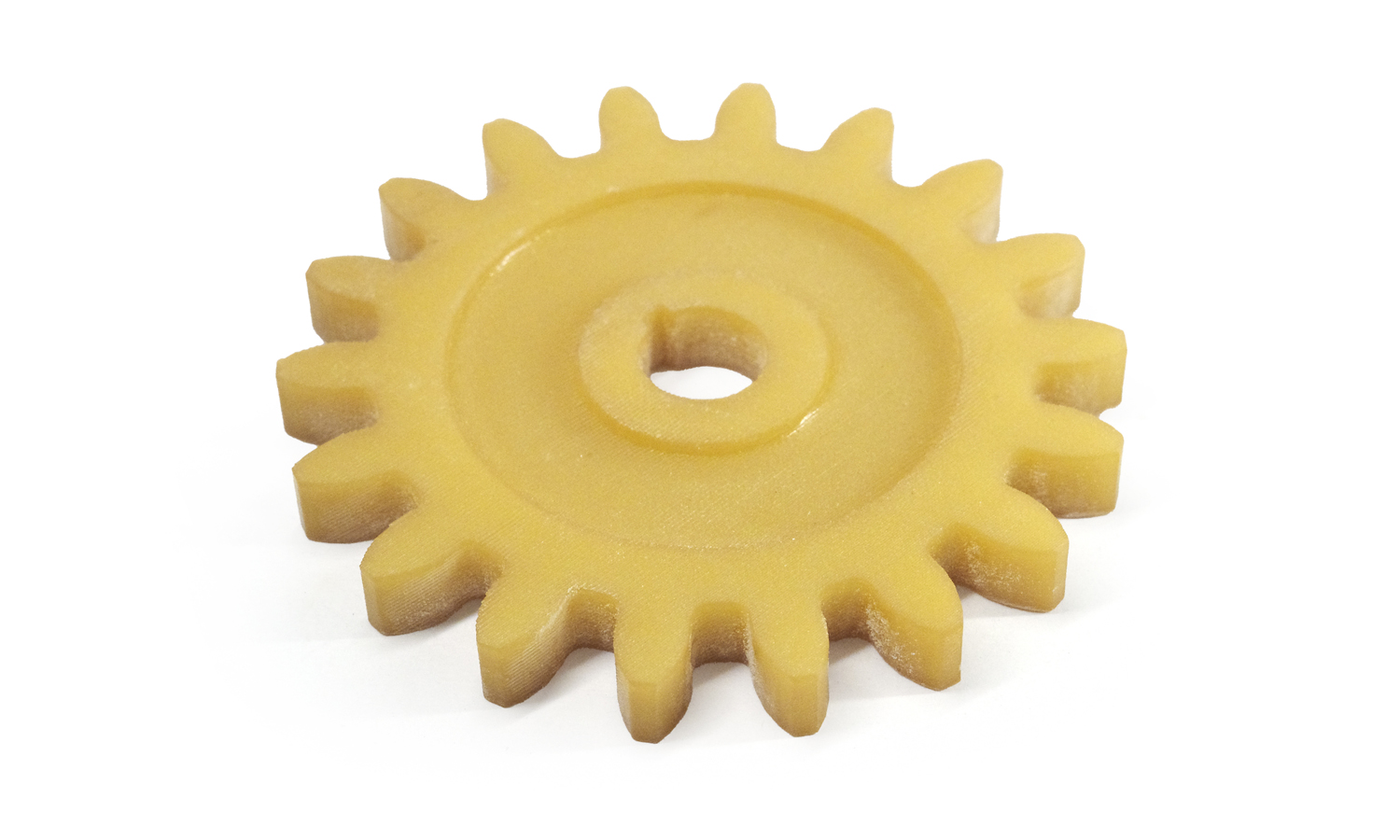

Unveiling the SLA 3D Printed High-temp Resin-220°C Gear Test Unit, a marvel of modern 3D printing technology and material science. This gear, meticulously crafted from yellow high-temp resin, showcases the exceptional capabilities of FacFox's advanced SLA 3D printing services.

Gear Test Unit Features

The gear boasts a central hole and 16 precisely aligned teeth, highlighting the extraordinary detail and accuracy achievable with Temp R220 resin. On the front surface, minimal visible 0.1mm layer lines indicate excellent layer adhesion, resulting in a smooth and refined finish. This precision ensures the gear meets the stringent requirements of high-performance applications.

Side Surface and Post-Processing

While the side surfaces exhibit some unevenness, these can be easily enhanced through sanding and polishing. This post-processing step not only improves the aesthetic appeal but also ensures the gear's functional performance remains uncompromised.

Exceptional Material Properties of Temp R220

SLA High-temp Resin-220°C (Temp R220) stands out with its remarkable temperature resistance. Post-treatment, the resin's heat deflection temperature can soar up to 227°C, making it an ideal choice for demanding environments. This resin is perfectly suited for applications requiring high-temperature endurance, such as:

• Wind Tunnels
• Impellers
• Motors
• Rapid Molds

Printing Excellence with FacFox

At FacFox, we take pride in delivering top-notch 3D printing services, specializing in high-temperature resins. Here's why you should choose FacFox for your next project:

• Cutting-edge SLA Technology: We utilize the latest in SLA 3D printing technology to achieve unparalleled precision and detail.
• Material Mastery: Our expertise with Temp R220 ensures your printed parts exhibit outstanding performance and durability.
• Custom Solutions: Tailor-made 3D printing services to meet your specific requirements, whether for prototypes, industrial parts, or intricate designs.

Experience the FacFox Difference

Discover how FacFox's SLA 3D printing services with SLA High-Temp Resin-220°C can transform your ideas into reality. Trust FacFox to provide you with the highest quality 3D printed parts, designed to withstand the most challenging conditions.

Elevate your projects with FacFox. Contact us today to get started!

Solution

• Step 1: 3D Model Creation. A digital 3D model of the gear was designed using specialized software.
• Step 2: Printing Preparation. The 3D model was sliced into layers, and the SLA 3D printer was calibrated for the material.
• Step 3: Resin Dispensing. SLA High-temp Resin-220°C was dispensed layer by layer onto the build platform using a laser.
• Step 4: Layer Curing. A UV laser cured each layer of resin, solidifying it into the desired shape.
• Step 5: Build Platform Lowering. The build platform was lowered to allow for the dispensing of the next layer.
• Step 6: Post-Processing. The printed gear was removed from the build platform and cleaned to remove any excess resin.
• Step 7: Curing. The gear was cured under UV light to ensure complete polymerization and optimal material properties.
