From Blueprint to Reality: The Next Generation of Heavy Lifting

Innovation in the construction and stone-working industries is often a heavy lift鈥攍iterally. We are excited to share a behind-the-scenes look at a recent Electric Vacuum Suction Cup prototype, a tool designed to redefine how professionals handle large-format tiles, glass, and heavy stone slabs.

Precision Engineering for Maximum Grip

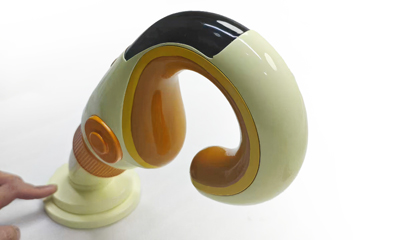

Unlike traditional manual suction lifters, this electric-powered prototype is engineered for constant, reliable vacuum pressure. The ergonomic C-shaped handle is designed for a natural “hand-feel,” allowing for one-handed operation while maintaining a secure grip.

Key features of this design include:

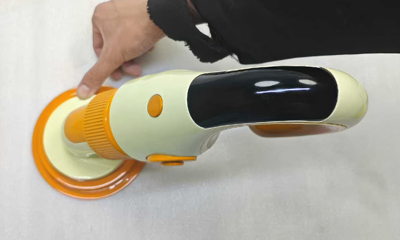

• Integrated Pressure Monitoring: The sleek black interface at the top is designed to house a digital gauge, providing real-time feedback on vacuum seals for maximum safety.

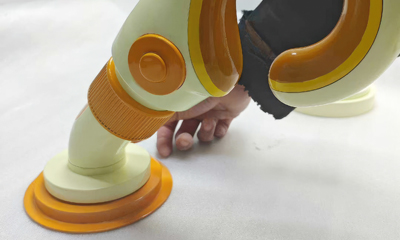

• Interchangeable Suction Heads: The modular base allows for various disc sizes, making the tool adaptable for everything from small textured tiles to massive glass panes.

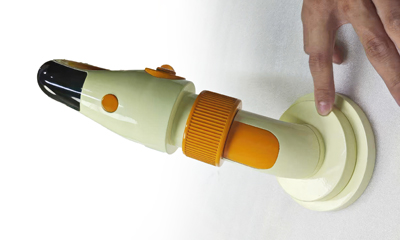

• Instant Release Controls: The strategically placed orange buttons offer tactile control for starting the internal pump or triggering a quick-release valve.

Bring Your Designs to Life with FacFox

At FacFox, we understand that a great product starts with a perfect prototype. Whether you are refining the ergonomics of a handheld tool or testing the mechanical fit of complex industrial components, our professional 3D printing services are here to accelerate your R&D cycle.

From high-resolution SLA for smooth aesthetic models to durable FDM and SLS for functional testing, we offer over 100 different materials to suit your project’s specific needs. Simply upload your CAD files, and our expert team will handle the rest鈥攄elivering industrial-grade parts with industry-leading turnaround times.

Ready to build the future? Let鈥檚 get printing.

Solution

• Step 1: The digital CAD model was meticulously designed and partitioned into individual components to facilitate a high-resolution print.
• Step 2: The 3D files were imported into specialized slicing software, where precise support structures were generated to maintain the integrity of the curved handle and overhanging geometries.
• Step 3: The prototype was fabricated using SLA (Stereolithography) technology, where a high-precision UV laser was used to selectively cure liquid photosensitive resin layer by layer.
• Step 4: The printed parts were removed from the build platform and thoroughly rinsed in an isopropyl alcohol (IPA) bath to eliminate any uncured residual resin.
• Step 5: The components were placed in a UV curing chamber, where the material properties were fully stabilized through controlled light and heat exposure.
• Step 6: Support marks were carefully sanded away, and the surfaces were polished to achieve the smooth, injection-molded appearance required for ergonomic testing.

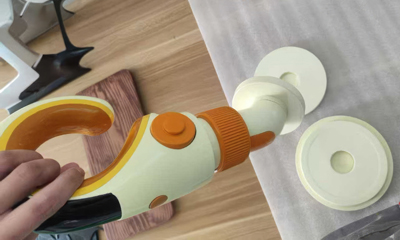

• Step 7: The final assembly was completed by joining the high-gloss handle, the orange adjustment ring, and the vacuum base to create the functional prototype.
